Swing damper FHL 02B-100-45 upper interface is performed in knuckle joint eye form factor and compatible with fork shape crane tip.
Link designed for crane tip fork end width 100mm.
Upper interface pin diameter 45mm.
link lower interface
Formiko swing damper FHL 02B-100-45
is compatible with fork shape upper interface rotators.
Designed for rotator upper interface width
80mm and rotator pin diameter
35mm.
For forestry
For cargo and general material handling
For agriculture and farming
For road and building construction
For recycling industry and earthmoving

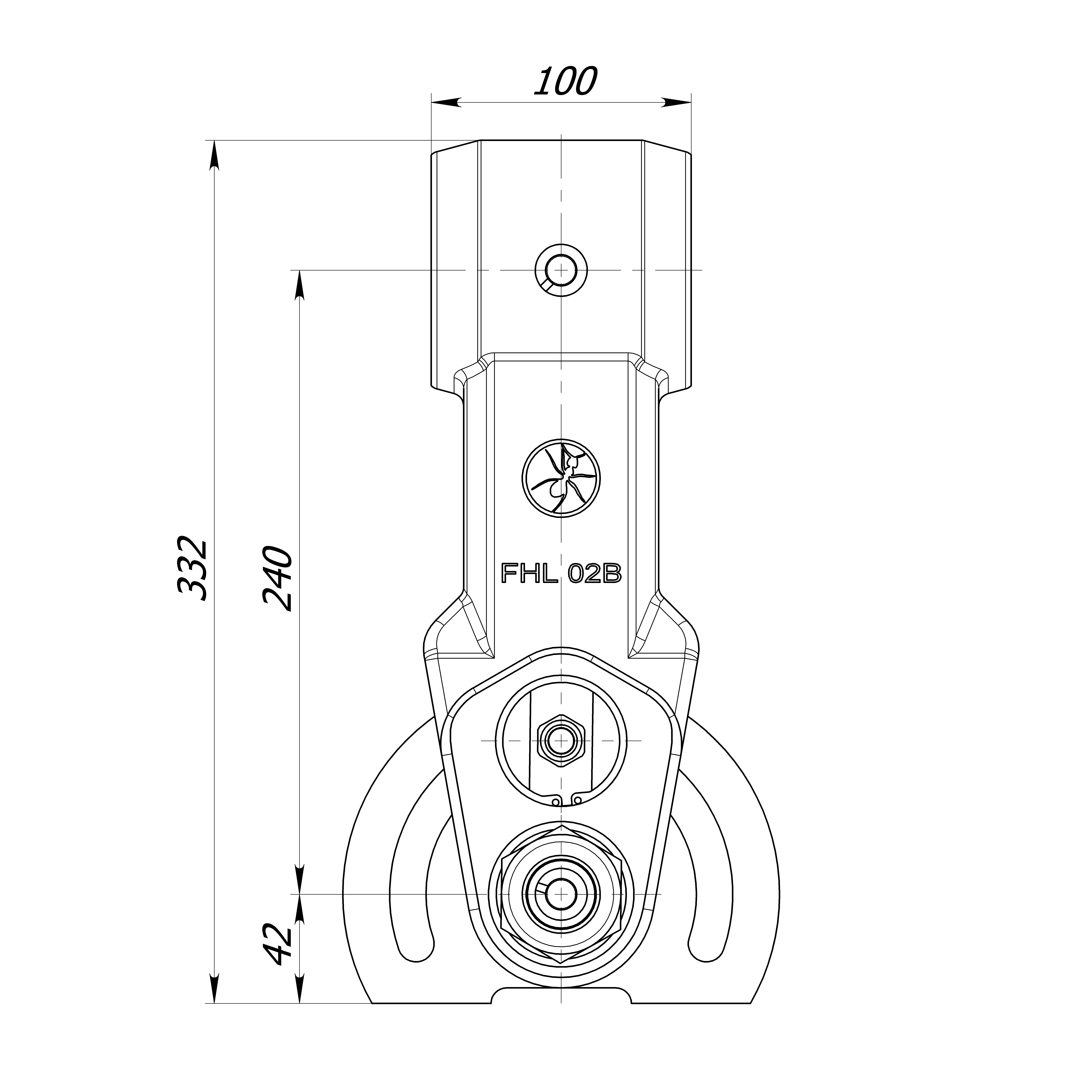

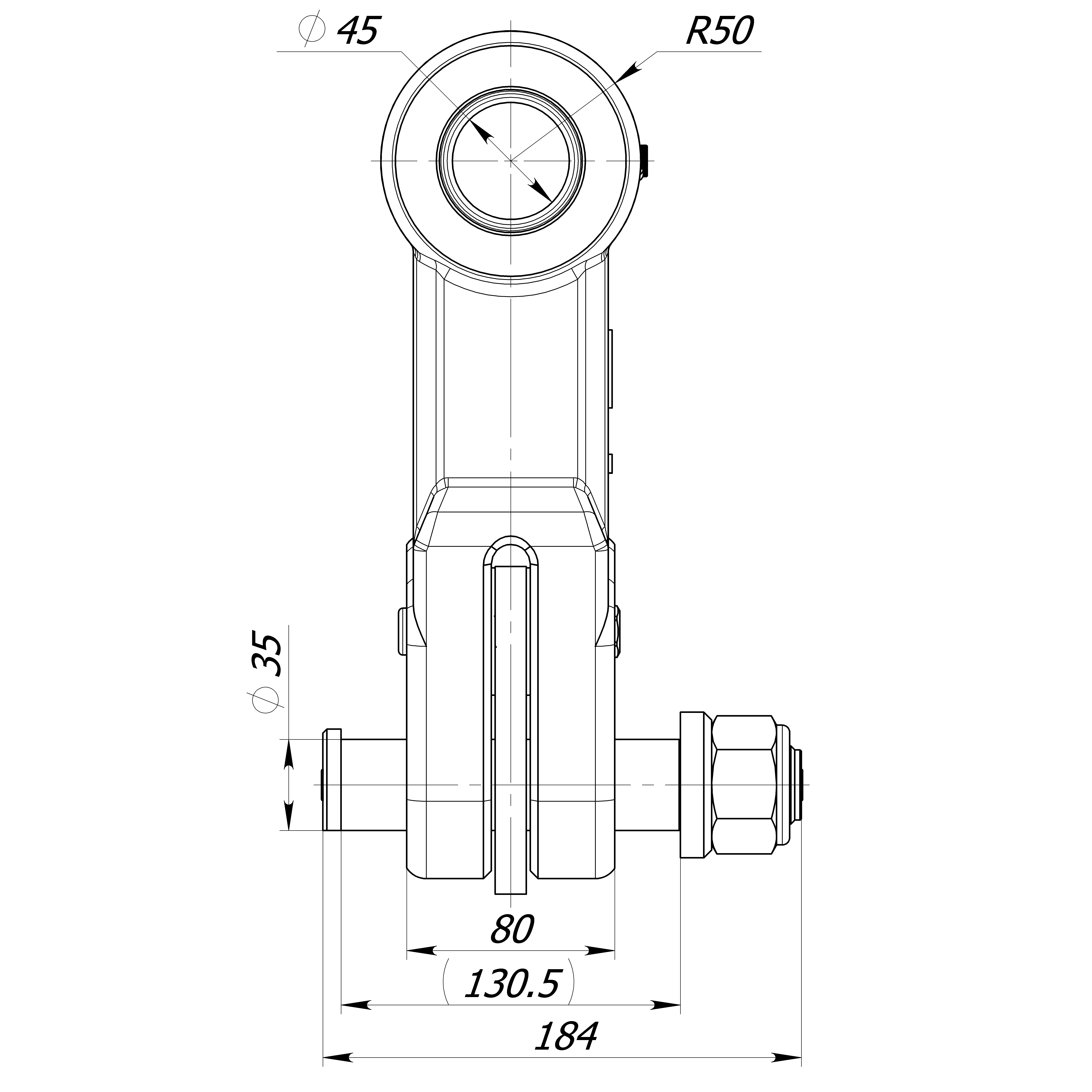

Link FHL 02B-100-45 dimension drawings
Swing damper or link with brakes FHL 02B-100-45 is designed to withstand loads up to 10t. Link FHL 02B-100-45 is made from shock and deformation resistant forged steel.
Links with brakes are useful in situations where smoothen the cargo swinging is required
Swing damper FHL 02B-100-45 upper interface is performed in knuckle joint eye form factor and compatible with fork shape crane tip.
Link designed for crane tip fork end width 100mm.
Upper interface pin diameter 45mm.
Formiko swing damper FHL 02B-100-45
is compatible with fork shape upper interface rotators.
Designed for rotator upper interface width
80mm and rotator pin diameter
35mm.
Max load - 100 kN
Pin locking nut has to be tightened with a torque of 120 Nm
Fill grease through grease nipples until it will appear to the external surfaces.
Greasing must be repeated after every 8 working hours of the link.
Link for shipping is packed in compact solid cardboard box with dimensions 280x180x180mm
We providing ONE year warranty for this swing damper
